U型圈RU6-ZURCON U-CUP RU6
Description

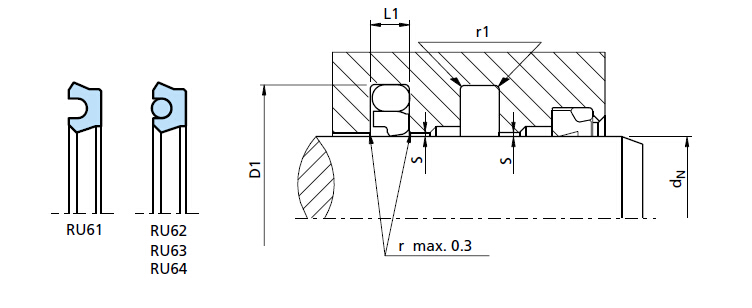

Additional to the machined seals Stepseal 2K and Rimseal
for housings due to ISO 7425/2 (rubber energised plastic
seals) the U-Cup type RU6 has been developped as an
injection molded seal of polyurethane material to fit in the
same ISO housings. The integrated NBR O—Ring (only
available for series RU62 - RU64) improves the
performance at low pressure and low temperature
applications. Polyurethan (Zurcon Z20) is a proved
material for U-cups due to their good mechanical
properties.
Application Examples
- General hydraulic cylinders
- Injection molding machines
- Lift trucks
- Agricultural machines
Technical Data
Operating pressure: Max. 25 MPa (as single
element)
Speed: Up to 0.5 m/s
Temperature: Use in mineral oils:
-35°C to + 110°C
Media: Mineral oil-based hydraulic
fluids.
Material
The thermoplastic polyurethane material Zurcon Z20 has a
high abrasion resistance, a low compression set and
exhibits a high resistance to clearance extrusion.
The integrated O—Ring is an NBR with 70 shore A and a very
low compression set.
U-Cup: polyurethane 93 shore A
material code Z20
O—Ring: NBR 70 Shore A
material code N
Set code: Z20N
