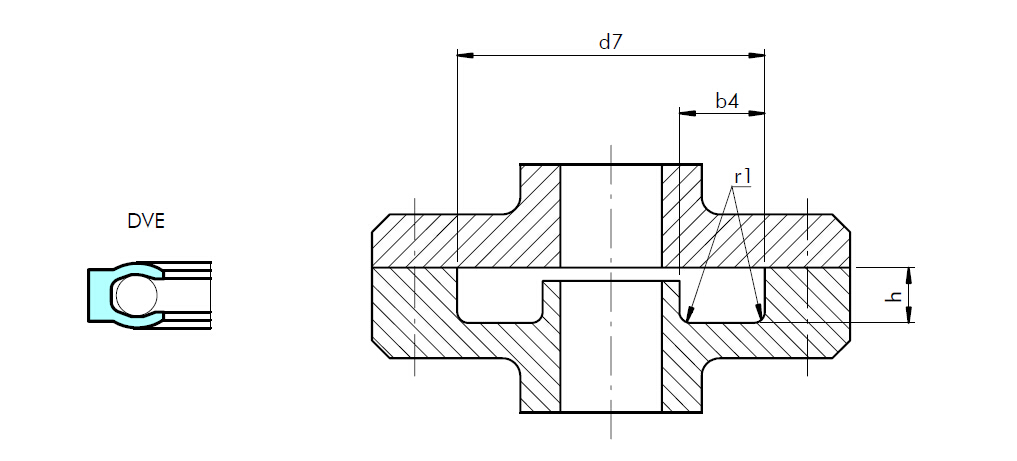

HF型特康泛塞封-Turcon variseal HF
TurconR VarisealR HF is the standard seal for axial (face)
applications. It has the same high sealing load as
VarisealRH and is available for both internal and external
pressure.
The heavy helical spring in VarisealR HF makes it the best
choice for vacuum, gas, and low temperature flange
sealing applications
Advantages
- High sealing pressure
- Excellent sealing integrity in gas and fluid applications
- Withstands rapid changes in temperature
- Good sealing when surfaces are not good
- Easy installation
- Unlimited shelf life
Technical Data
Operating
pressure: Maximum dynamic load: 40 MPa
(400 bar, 5800 psi)
Maximum static load: 80 MPa
(600 bar, 11603 psi)
Speed: Static to slow rotating or pivoting
movements
Operating
temperature: -200 °C (-328 °F) up to
+260 °C (+500 °F)
Media
compatibility: Virtually all fluids, chemicals and
gases.
Note: Consult Busak+Shamban for
applications outside these parameters.
Standard Materials
Jacket: Material code T05
Spring material: Spring code S
(stainless steel),
Material No. 1.4310 (AISI 301)
